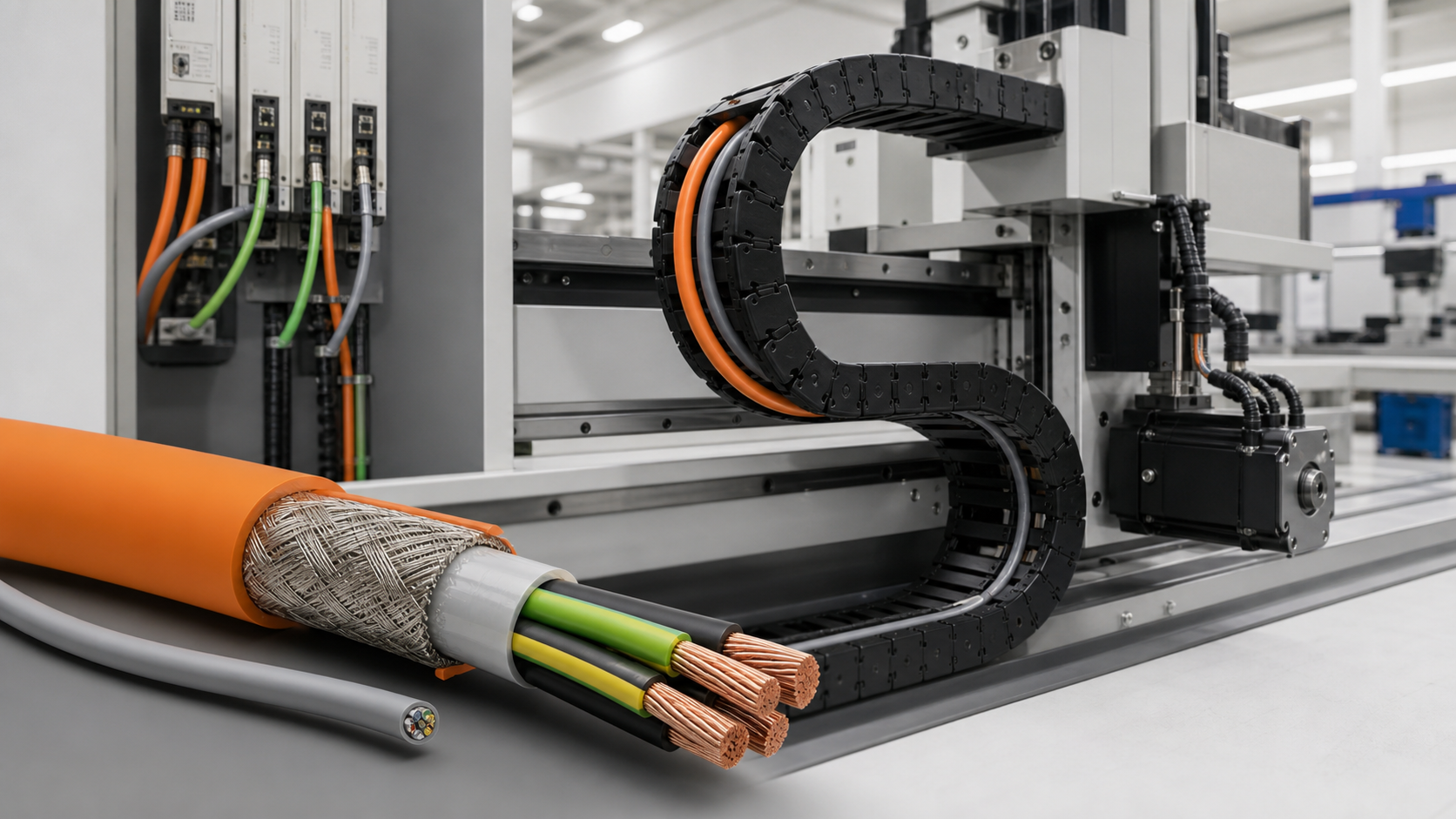

A servo cable inside a drag chain has two jobs. Electrically, it must carry motor power without creating avoidable interference. Mechanically, it must survive the same bending movement thousands or millions of times without conductor, shield or jacket failure.
That combination is why an ordinary flexible power cable is not automatically a suitable servo cable for a moving cable carrier. The right choice starts with the servo drive and motor requirements, then adds the real motion and environmental conditions of the machine.
A servo power cable and a feedback cable may travel through the same carrier, but they perform different functions and normally require different constructions.
Before comparing cable jackets or cycle-life figures, check the documentation supplied with the servo motor, drive and connector. The cable must match the electrical system, not simply the motor's physical size.
Record the following information:
A typical servo power connection includes the three motor phases and protective earth. Some systems also place brake conductors in the same cable, while others use a separate cable. These layouts should not be assumed from the motor power rating alone—confirm the pinout first.
The terms “servo cable” and “servo motor cable” are sometimes used loosely. In practice, a servo axis can need at least two different cable functions.
| Cable function | Main purpose | Construction points to check |
|---|---|---|
| Servo motor power cable | Carries drive output to the motor | Conductor cross-section, voltage rating, PE core, overall shield, dynamic flex rating |
| Encoder or feedback cable | Carries position, speed or temperature signals | Correct pair layout, pair shielding or overall shielding, impedance where specified, low-noise signal transmission, dynamic flex rating |
| Brake cable or integrated brake cores | Supplies the motor holding brake | Core count, conductor size, voltage and pin assignment |
An encoder cable cannot be selected as a substitute for a motor power cable simply because both are shielded. Its conductor sizes, pair arrangement and electrical purpose are different. Likewise, adding spare power cores does not recreate the controlled pair geometry required by some feedback protocols.
A cable may feel soft in the hand and still have a short service life in a drag chain. Continuous-flex construction is designed around repeated, controlled bending. It commonly uses finely stranded conductors, a flex-optimized core lay, suitable separators or inner sheath, a braid that can tolerate movement, and a jacket selected for the application.
This distinction matters throughout the cable, not only at the conductor. A shield can fatigue, bunch or lose its electrical performance before the copper power cores fail. An unsuitable outer jacket can also crack or wear through where it contacts the carrier.
For continuous movement, use a product whose data sheet specifically covers drag-chain or continuous-flex service. A general-purpose flexible shielded cable should not be treated as equivalent unless the manufacturer has qualified it for the intended movement.
Conductor cross-section should be selected using the motor current, cable length, installation method, ambient temperature and the applicable electrical rules. A long cable run may need a larger cross-section to control voltage drop even when the shorter run would meet the current requirement.
Do not forget the effect of grouping. Several loaded cables sharing a carrier can retain more heat than a single cable in open air. The machine builder should apply the appropriate current-carrying-capacity and temperature corrections rather than copying a conductor size from another machine.
The protective earth conductor is part of the safety design and must match the equipment and applicable standard. It should not be omitted because the cable already has a metallic braid; the shield and PE conductor do not automatically serve the same function.
Servo drives switch rapidly and can produce electromagnetic noise. For that reason, a servo motor power cable commonly uses an overall metallic braid beneath the outer jacket. A stable inner layer under the braid helps keep the core assembly and shield organized during repeated flexing.
Shield performance depends on the complete installation. At the drive and motor ends, use the connector or gland system recommended by the equipment manufacturer. A low-impedance, 360-degree shield connection is generally more effective at high frequencies than a long, thin drain-wire-style connection. Keep the exposed unshielded section as short as practical and avoid making a narrow “pigtail” unless the equipment instructions specifically call for it.
Power and feedback cables should also follow the machine builder's separation rules. Where possible, provide physical separation inside the carrier instead of tightly bundling noisy motor power conductors against sensitive feedback or communication cables.
Cable data sheets may list both fixed-installation and moving bend radii. The dynamic value is the one that matters inside a drag chain. It is usually expressed as a multiple of the cable outside diameter.
The carrier bend radius must meet the requirement of the stiffest cable or hose placed inside it. Running below the permitted dynamic radius places extra strain on the conductors, braid and jacket. If space allows, a larger radius is generally kinder to the cable than operating at the minimum value.
Also check that the cable has room to move along the carrier's neutral axis. It should not be pulled tight, forced against adjacent cables or twisted during installation. Paying the cable straight from the reel is safer than lifting it off in loops, which can introduce torsion before the machine makes its first cycle.
A statement such as “5 million,” “10 million” or “20 million cycles” is meaningful only together with its test conditions. Bend radius, travel distance, speed, acceleration, cable loading and temperature all affect the result.
For example, a cable tested at a relatively generous bend radius cannot be expected to deliver the same life when installed in a smaller carrier with higher acceleration and poor internal separation. Treat the cycle figure as a test reference, then ask whether the test is reasonably close to the machine's working conditions.
For a demanding axis, provide the supplier with:
This is more useful than asking for the “highest-flex cable” without describing the motion.
PVC and PUR jackets can both be suitable choices, but they are not interchangeable in every factory.
Flexible PVC is often practical for protected indoor equipment with moderate mechanical and chemical exposure. PUR is frequently considered where abrasion, oil, coolant or tougher mechanical service is a concern. The final choice should be based on the exact compound and its published resistance data—not the material name alone.
Check for any fluids used on the machine, including cutting oil, water-based coolant and cleaning chemicals. Also note ambient temperature, possible hot-chip contact, UV exposure and whether the cable needs a specific flame-retardant or halogen-free construction. If regulatory compliance is required, state the destination market and required certification during the enquiry.
A drag chain creates repeated bending in a controlled plane. A robot wrist can create torsion around the cable axis. These are different mechanical loads.
Do not use a bend-rated servo cable in a torsional robot application unless the product data explicitly covers the required torsion angle, cable length and cycle life. A cable that performs well on a linear CNC axis may still be the wrong construction for a rotating robot joint.
Correct selection can still be undermined by poor installation. Before full-speed commissioning:
After the first production run, inspect for jacket rubbing, cable migration, tight sections and connector movement. Correcting these signs early is much cheaper than troubleshooting an intermittent servo fault later.
A clear enquiry makes it easier to select or customize the cable correctly. Send the supplier the servo motor and drive models, voltage and current, conductor arrangement, conductor cross-section if already specified, brake-core requirement, shielding requirement, cable length, connector information, drag-chain bend radius, speed, acceleration, travel distance, expected cycles, jacket environment and required approvals.
If the design is not final, provide the known values and identify what still needs confirmation. A cable sample or trial assembly can be useful when connector fit, carrier space or an unusually demanding motion profile is involved.
The best continuous flexing servo cable is not simply the one with the largest cycle number or thickest jacket. It is the cable that matches the drive electrically, controls interference, fits the connector and carrier, and has been designed for the machine's real movement.
